PPFD, DLI and Light Distance: The Complete Light Management Guide for Cannabis
Learn how to dial in PPFD, DLI, lamp height and light intensity for every growth stage — simply explained, practical, and free of guesswork. The complete pillar guide to intelligent light management for cannabis.
Marvin Trilk
Founder and Editor
Two growers buy the exact same LED, run it in the exact same tent size, and end up with wildly different harvests. One pulls 500 g/m², the other struggles to break 250 g. The hardware is identical — so what actually changed? The answer is almost never watts. It is how much usable light actually arrives at the canopy, and how well that light matches the growth stage, the climate, and the genetics.
Table of contents
- Why the same lamp produces different results
- The language of light — PAR, PPF, PPFD, DLI explained
- PPFD in plain English
- DLI in plain English
- Light distance and the inverse-square law
- Optimal values for every growth stage
- Measure, don't guess
- Common mistakes and myths
- How light interacts with VPD, CO₂, water and nutrients
- FAQ and conclusion
1. Why the same lamp produces different results in two grow rooms
A high-quality LED alone does not guarantee high yield. What matters is how much usable light actually reaches the canopy and whether that dose fits the plant's current stage, climate and genetics. A 320 W board hung 60 cm above a seedling in a 24 °C tent behaves completely differently than the same board hung 30 cm above a mid-flower plant at 27 °C with CO₂ enrichment. The lamp did not change — everything around it did.
The chain that decides your yield
- 1LED wattage & efficiency
- 2PPFD at canopy
- 3DLI over the day
- 4Photosynthesis rate
- 5Interaction with VPD, CO₂, water, nutrients
- 6Final yield & quality
2. The language of light — every term you actually need
Most confusion around grow lighting comes from mixing units that measure completely different things. Lumens describe what a human eye sees; plants do not care. Watts describe energy at the wall; plants do not care about that either. The units that actually matter to a leaf are photons in the 400–700 nm range.
| Term | Unit | Meaning | Practical use |
|---|---|---|---|
| PAR | 400–700 nm | The wavelength range plants use for photosynthesis | Defines which photons even count |
| PPF | μmol/s | Total photons a lamp emits per second in PAR range | Compares one lamp to another |
| PPFD | μmol/m²/s | Photons arriving per second per square metre of canopy | The number you measure at plant height |
| DLI | mol/m²/day | Total photon dose over the whole photoperiod | Tells you the daily light meal |
| Lux / Lumen | lm, lx | Brightness as perceived by the human eye | Useless for plants — ignore |
| µmol/J | μmol per Joule | Efficiency of a lamp (photons per watt) | Compares LED efficiency |
| Photoperiod | hours | How many hours the light is on per day | Multiplier that turns PPFD into DLI |
How the light chain works
- 1LED emits electrons → photons (PAR range)
- 2Photons travel to canopy → PPFD
- 3PPFD × time → DLI
- 4DLI drives photosynthesis
- 5Photosynthesis + CO₂ + water + nutrients → growth
3. PPFD in plain English
PPFD stands for Photosynthetic Photon Flux Density. Forget the acronym for a moment. It simply answers one question: how many photons in the useful range are landing on one square metre of canopy every second? Unit: μmol/m²/s (micromoles per square metre per second).
Think of PPFD as rain intensity. A drizzle wets the plant slowly; a downpour delivers the same water in a fraction of the time. Same for light — the plant only 'sees' the rain rate at the leaf surface, not the size of the cloud.
Why PPFD matters — and why more is not always better
The photosynthesis curve
PPFD at canopy
- Too low → slow growth, stretching, weak buds
- Optimal → maximum photosynthesis, tight nodes, dense flowers
- Too high → light stress, bleaching, taco leaves, foxtailing
- 1.The 'optimal' band shifts with stage, CO₂, temperature and VPD
PPFD is not constant across your tent. It peaks directly under the lamp and drops off fast toward the edges and corners. Always measure at canopy height and at multiple points — five to nine spots is a good compromise. What matters is the average across the productive area, not the peak in the sweet spot.
4. DLI in plain English
DLI stands for Daily Light Integral. If PPFD is the rain rate, DLI is the total water in the bucket at the end of the day. Formula: DLI = PPFD × hours × 0.0036 (unit: mol/m²/day). PPFD is a snapshot; DLI is the meal.
This is the missing piece for anyone running autoflowers or thinking about extending photoperiods. A plant under 400 μmol/m²/s for 20 hours receives a completely different daily dose than one under 400 μmol/m²/s for 12 hours — even though the momentary intensity is identical.
| PPFD (μmol/m²/s) | 12 h → DLI | 18 h → DLI | 20 h → DLI | 24 h → DLI |
|---|---|---|---|---|
| 200 | 8.6 | 13.0 | 14.4 | 17.3 |
| 300 | 13.0 | 19.4 | 21.6 | 25.9 |
| 400 | 17.3 | 25.9 | 28.8 | 34.6 |
| 500 | 21.6 | 32.4 | 36.0 | 43.2 |
| 600 | 25.9 | 38.9 | 43.2 | 51.8 |
| 700 | 30.2 | 45.4 | 50.4 | 60.5 |
| 800 | 34.6 | 51.8 | 57.6 | 69.1 |
| 900 | 38.9 | 58.3 | 64.8 | 77.8 |
| 1000 | 43.2 | 64.8 | 72.0 | 86.4 |

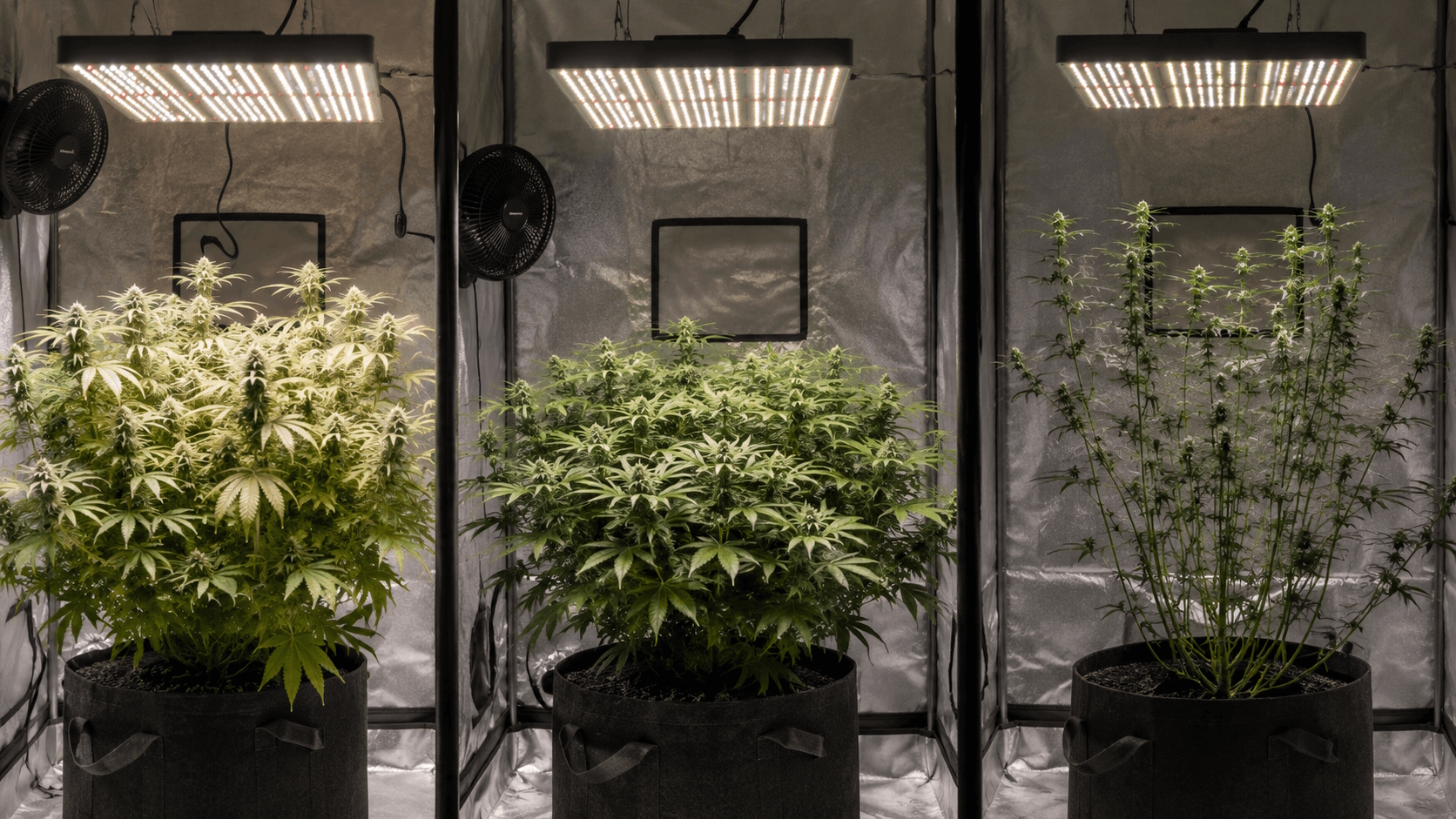

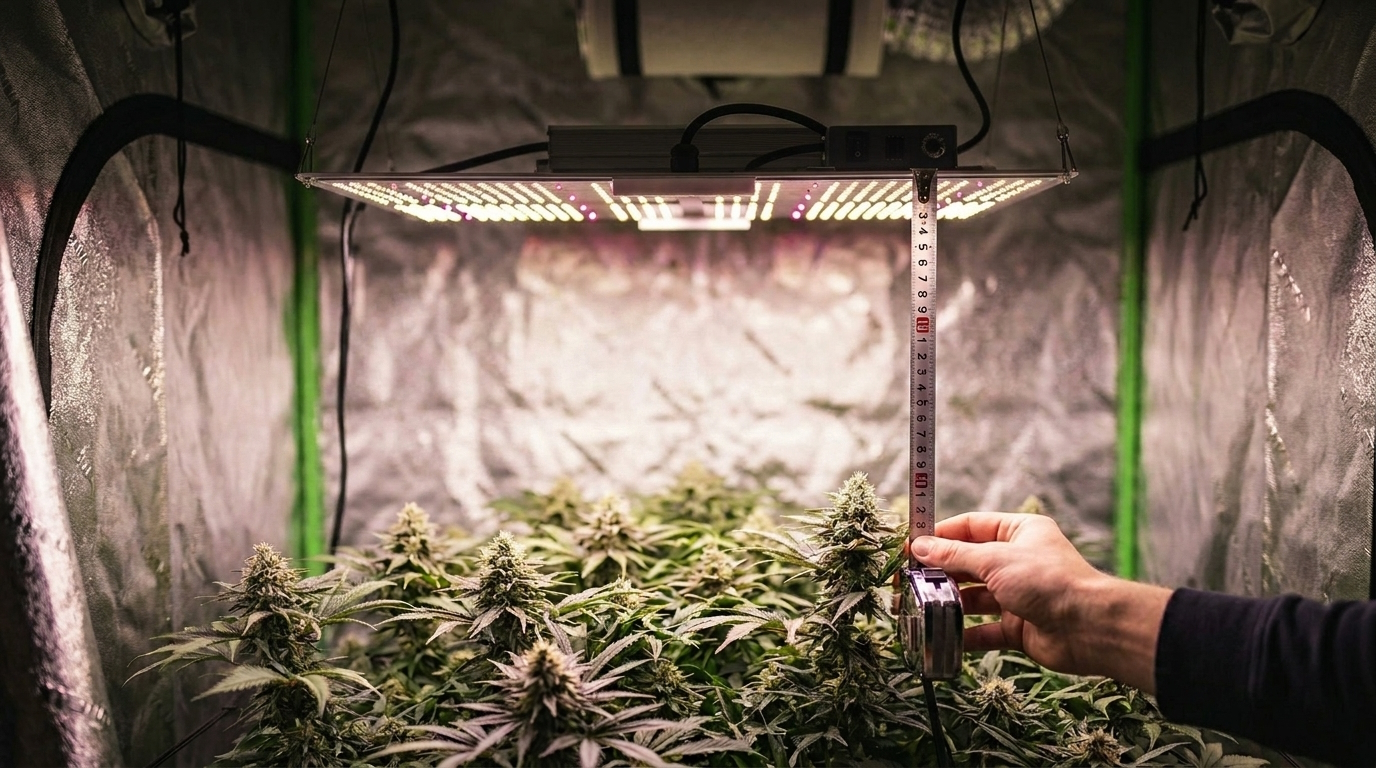

5. Light distance — the inverse-square law made simple
Cut the distance from your lamp to the canopy in half and PPFD roughly quadruples. Double the distance and PPFD falls to about a quarter. This is the inverse-square law, and it is why five centimetres of lamp height can be the difference between a productive canopy and a bleached one.
Distance controls three things at once
- Intensity (PPFD): closer = more photons at canopy.
- Uniformity: farther = a wider, more even spread; closer = hot spots directly under the lamp.
- Leaf-surface temperature: closer LEDs also radiate more heat and IR onto the top leaves, even though the room temperature has not changed.
Sane starting distances for modern quantum-board LEDs
- Seedling: 50–70 cm, dimmer at 30–40 %.
- Vegetative: 40–55 cm, dimmer at 50–70 %.
- Flowering: 30–45 cm, dimmer at 80–100 %.
- HPS users: add ~15 cm to all of the above and watch leaf-surface temperature, not just air temperature.
6. Optimal values for every growth stage
This is the table you will come back to every grow. Treat these numbers as bands, not absolutes — genetics, CO₂ levels and climate can shift the optimum by 100–200 μmol/m²/s in either direction.
| Stage | PPFD (μmol/m²/s) | DLI (mol/m²/day) | Distance (modern LED) | Photoperiod | Notes |
|---|---|---|---|---|---|
| Seedling (wk 1–2) | 150–300 | 6–13 | 50–70 cm | 18/6 | Fragile — err on the low side |
| Early veg (wk 2–4) | 300–500 | 19–32 | 45–60 cm | 18/6 | Ramp up intensity gradually |
| Late veg (wk 4+) | 500–700 | 32–45 | 40–55 cm | 18/6 | Build the frame for flower |
| Pre-flower / stretch | 600–800 | 26–35 | 35–50 cm | 12/12 | Stretch controls internode length |
| Early flower (wk 1–3) | 600–800 | 26–35 | 35–45 cm | 12/12 | Flower initiation, sensitive |
| Peak flower (wk 4–7) | 800–1000 | 35–43 | 30–45 cm | 12/12 | The heavy-lifting phase |
| Late flower / ripening | 600–800 | 26–35 | 35–50 cm | 12/12 | Slight reduction protects trichomes |
7. Measure, don't guess
You cannot manage what you do not measure. Every serious grower ends up with some way of reading actual PPFD at canopy — the question is only which tool.
| Tool | Accuracy | Cost | When to use |
|---|---|---|---|
| Quantum sensor (Apogee MQ-500 etc.) | ±5 % | € 300–500 | Serious hobbyists, commercial |
| Budget PAR meter (e.g. Uni-T UT383BT-alike) | ±10–15 % | € 40–80 | First real PPFD meter for most growers |
| Smartphone apps (Photone, Korona) | ±15–25 % with diffuser | € 0–15 | Rough sanity check, relative changes |
| Manufacturer PPFD map | Depends on honesty of vendor | Free | Baseline reference — verify at canopy |
| Lux meter × conversion factor | ±20–40 % | € 15–30 | Last resort — different factor per spectrum |

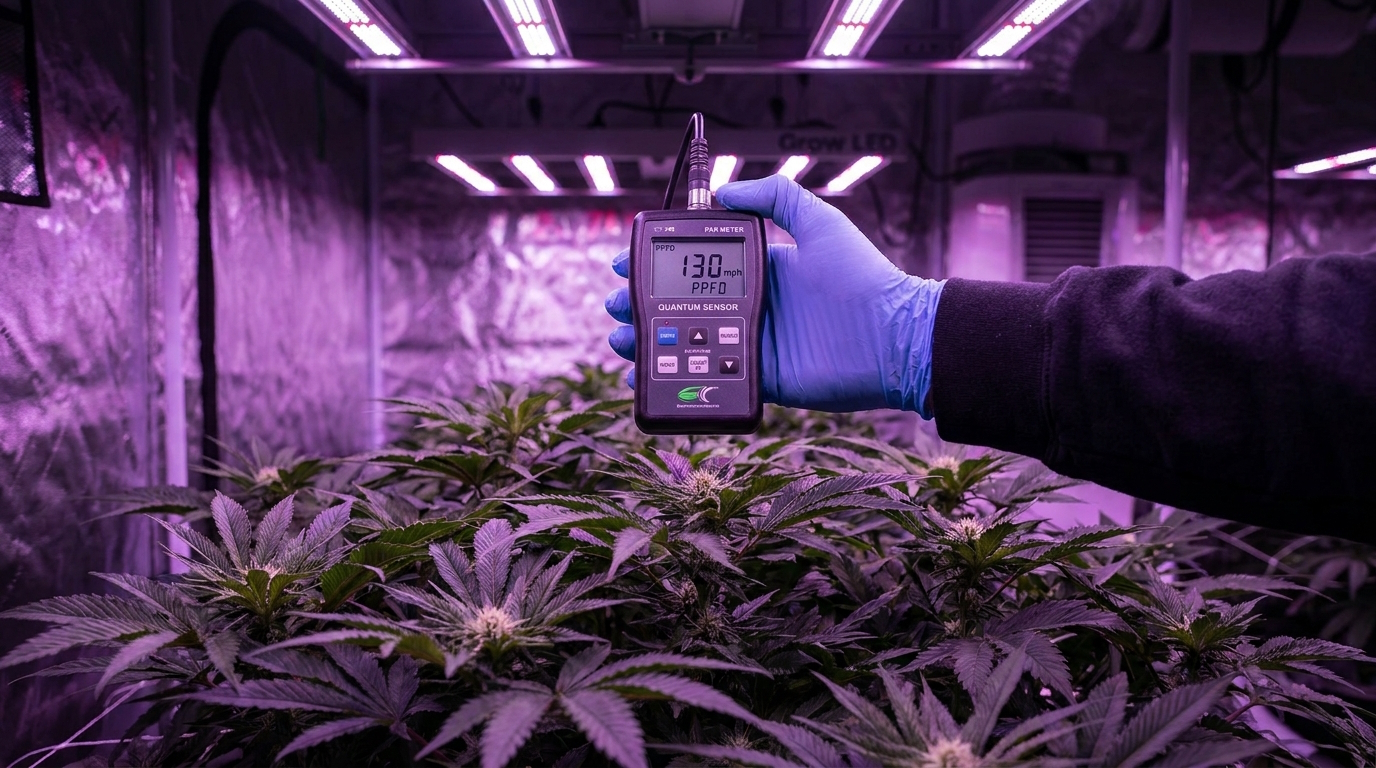

How to measure PPFD correctly
- Measure at canopy height, sensor pointing straight up at the lamp.
- Take at least five points: centre, four corners of the footprint. Nine is better.
- Average the readings — do not use the peak.
- Move any leaves or fingers out of the way; even a shadow ruins the reading.
- Repeat whenever the canopy grows more than 10 cm — PPFD at the new top of the plant is what matters, not last week's number.
8. Common mistakes and myths
The seven most expensive mistakes
- Lamp too close in flower → bleached top buds, taco leaves, foxtailing.
- Lamp too far in veg → stretchy internodes, weak stems, low bud sites.
- Chasing a peak PPFD number and ignoring uniformity → half the tent underperforms.
- Confusing lux with PPFD → completely different spectra read the same lux at wildly different PPFDs.
- Trusting marketing wattage (a '2000 W' lamp that draws 240 W from the wall) → sizing your tent wrong.
- Never re-measuring after topping or defoliation → canopy height changed, PPFD at the new top changed with it.
- Cranking PPFD to 1200+ in ambient air and blaming genetics for the stress signs.
Three myths that will not die
| Myth | Reality |
|---|---|
| More PPFD always means more yield. | Only until the plant's biochemistry saturates. Above the ceiling, extra photons cause damage, not growth. |
| LEDs should always be 30 cm from the canopy. | Depends entirely on the lamp's efficiency, spectrum and dimmer setting — measure PPFD, do not guess distance. |
| All LEDs are basically the same. | µmol/J efficiency ranges from ~1.5 (cheap blurple) to 3.0+ (top-tier quantum boards). That is a 2× difference in photons per watt. |
Is it really light stress? A diagnostic table
| Symptom | Light stress | Heat stress | Nutrient issue | VPD problem |
|---|---|---|---|---|
| Top leaves taco up | Yes — very common | Also common | No | Possible at low VPD |
| Bleached white patches on top buds | Yes — classic sign | Rare | No | No |
| Yellow only on the topmost fan leaves, rest green | Yes (light burn) | Possible | Rarely so localised | No |
| Interveinal yellowing across many leaves | No | No | Yes (Mg, Fe, N) | No |
| Foxtailing / tower buds on the tops | Yes at very high PPFD + heat | Contributing | No | No |
| Leaf edges curled down and drooping | Overwatering / root | No | Yes (overfeed) | Possible |
9. Light does not act alone — how PPFD interacts with everything else
This is where most beginner guides stop and where serious growers earn their extra 30 %. Photons only turn into buds when the plant can actually process them — and that depends on CO₂, temperature, VPD, water and nutrients being in the right zone at the same time.
The interaction chain
- 1PPFD delivers photons
- 2Stomata open (governed by VPD 0.8–1.5 kPa)
- 3CO₂ enters the leaf (400 ppm ambient, 800–1200 ppm enriched)
- 4Photosynthesis produces sugars
- 5Water & nutrients are pulled up through the roots
- 6Sugars build cells, then flowers → yield
When each factor becomes the bottleneck
| Bottleneck | Symptom | Fix |
|---|---|---|
| CO₂ (at PPFD > 900) | Growth plateaus despite more light | Add CO₂ to 800–1200 ppm or accept the ceiling |
| VPD too low (< 0.6 kPa) | Stomata half-closed, slow uptake | Lower humidity or raise temperature slightly |
| VPD too high (> 1.6 kPa) | Leaves close stomata to conserve water, photosynthesis stalls | Raise humidity, especially in late veg |
| Temperature < 22 °C at high PPFD | Cold canopy, purple stems, sluggish uptake | Raise leaf temperature 2–4 °C |
| Temperature > 30 °C | Enzymes lose efficiency, terpenes evaporate | Improve airflow, dim, or raise the lamp |
| Water/nutrients | Wilting, deficiencies mid-cycle | Match feed to actual DLI and stage |
10. Typical setups — what PPFD you should expect in your tent
| Tent | Recommended LED wattage (flower) | Realistic average PPFD | Typical distance in flower |
|---|---|---|---|
| 60 × 60 cm | 100–150 W | 700–900 μmol/m²/s | 30–40 cm |
| 80 × 80 cm | 200–260 W | 700–900 μmol/m²/s | 35–45 cm |
| 100 × 100 cm | 300–400 W | 700–900 μmol/m²/s | 40–50 cm |
| 120 × 120 cm | 400–500 W | 700–900 μmol/m²/s | 40–55 cm |
| 150 × 150 cm | 600–800 W | 700–900 μmol/m²/s | 45–60 cm |
The DLI calculator by example
Multiply PPFD by hours by 0.0036 and you get DLI in mol/m²/day. Three worked examples:
- Autoflower seedling: 300 μmol/m²/s × 18 h × 0.0036 = 19.4 mol/m²/day → right in the veg sweet spot.
- Autoflower late flower: 500 μmol/m²/s × 20 h × 0.0036 = 36 mol/m²/day → equivalent daily dose to a photoperiod pushing 830 PPFD for 12 h.
- Photoperiod peak flower: 900 μmol/m²/s × 12 h × 0.0036 = 38.9 mol/m²/day → strong but sustainable without CO₂.
The intelligent light management decision tree
What do you observe first?
Observe the top of the canopy
- Plant looks stretchy → too little light
- Plant looks perfect → hold, verify PPFD
- Leaves taco / bleach → too much light or heat
- 1.If too little: lower the lamp 5 cm or raise the dimmer 10 %, re-measure PPFD after 24 h
- 2.If perfect: log the numbers (distance, dimmer, PPFD, DLI) for next grow
- 3.If too much: raise the lamp 10 cm and dim 10 %, verify VPD and temperature at the same time
FAQ
How much PPFD do I need in flower?
Without CO₂, aim for 700–900 μmol/m²/s average during peak flower. Above 1000 you enter the diminishing-returns zone and risk light stress. With CO₂ enrichment (800–1200 ppm) and tight climate control, 1000–1300 μmol/m²/s becomes productive.
How much PPFD in veg?
Seedlings: 150–300 μmol/m²/s. Early veg: 300–500. Late veg: 500–700. Ramp gradually as the plant develops leaf mass to use the extra light.
Do I need CO₂?
Only above ~900 μmol/m²/s and only if temperature (26–29 °C) and VPD (1.2–1.5 kPa) are dialled in. Below that, adding CO₂ is expensive with little payoff.
Can I estimate PPFD without a meter?
Manufacturer PPFD maps give a starting point. Smartphone apps like Photone with a diffuser get you within 15–25 %. A basic PAR meter (~50 €) removes the last of the guesswork and pays back on the first grow.
How high should my LED hang?
There is no universal answer. Modern quantum boards: 50–70 cm for seedlings, 40–55 cm for veg, 30–45 cm for flower — but always verify with a PPFD reading at canopy, not with a tape measure alone.
Why are my leaves curling up like tacos?
Almost always light or heat stress. Raise the lamp 10 cm, dim 10 %, and check leaf-surface temperature (should not exceed ~28 °C in flower).
Is more light always better?
No. Above the biochemical ceiling — around 1000 μmol/m²/s in ambient air — extra photons cause bleaching, foxtailing and terpene loss instead of yield. The ceiling only moves up if CO₂, VPD and temperature also move.
How do I measure DLI?
Measure your average PPFD at canopy, then compute DLI = PPFD × photoperiod hours × 0.0036. Some meters and smartphone apps have DLI built in.
PPFD or DLI — which matters more?
Both. PPFD tells you if the current intensity is safe or damaging; DLI tells you if the daily total is enough for the stage. Autoflower and photoperiod growers care most about DLI; anyone worried about bleaching cares most about PPFD peaks.
How often should I measure?
At every major canopy change: after transplant, after topping, when the tallest tops grow more than 10 cm past the last reading, and any time you change the dimmer or lamp height.
Why do manufacturers' PPFD numbers differ from what I measure?
Vendors typically publish peak PPFD in a bare-room test at a specific height. Real tents have reflective walls (raises PPFD), plant shadowing (lowers PPFD), and non-central measurement points (much lower PPFD). Always trust your canopy reading, not the datasheet.

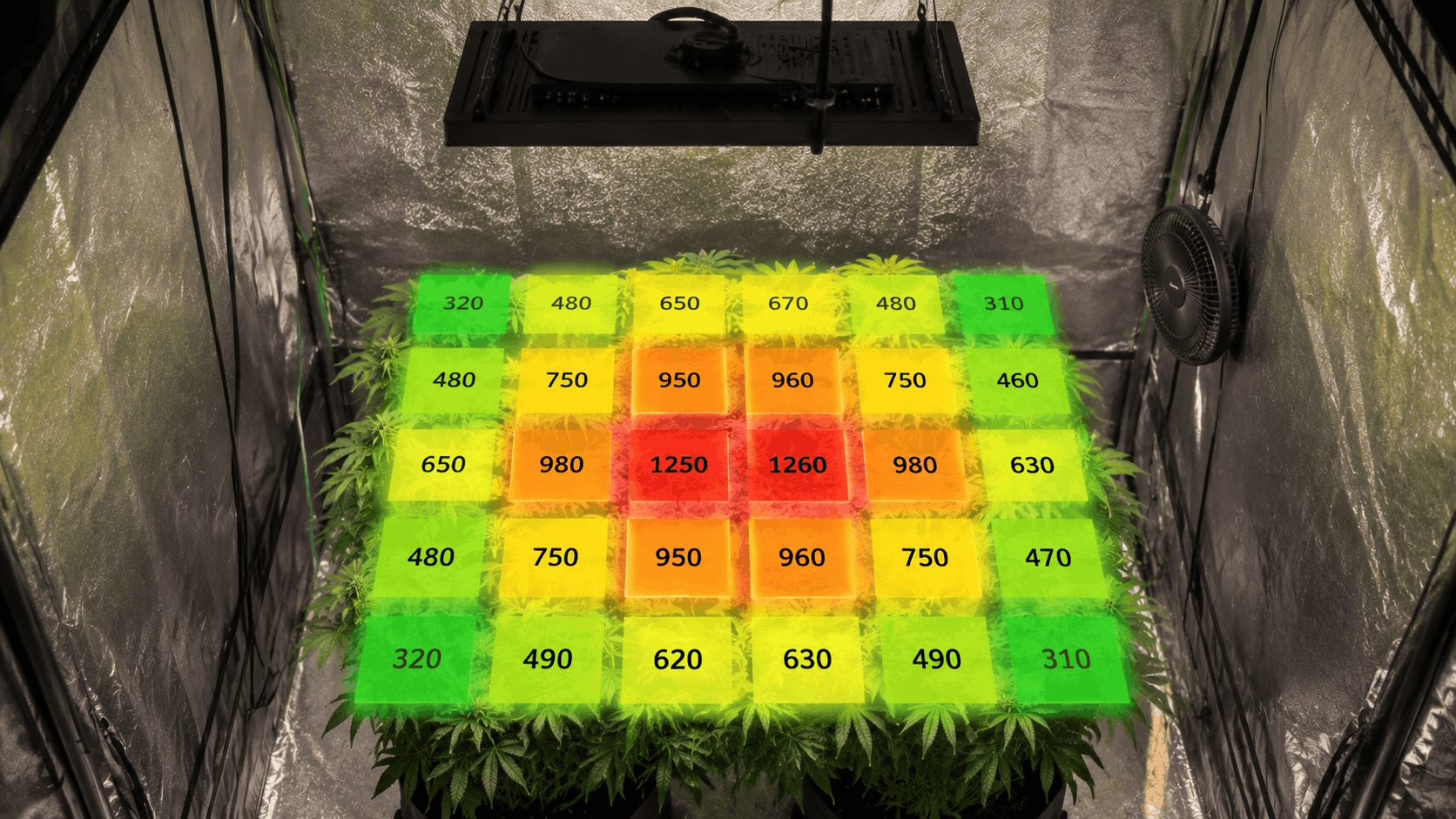

What is a PPFD heatmap and how do I read one?
It is a top-down grid showing PPFD in μmol/m²/s at each point of the footprint. Read the average across the productive area — not the peak in the centre — and pay attention to the uniformity ratio (min ÷ max). Below 0.6, the corners are starving.
Can I use a lux meter instead of a PAR meter?
Only for rough relative comparisons of the same lamp, since lux → PPFD conversion factors vary by spectrum. For anything decision-worthy, use a PAR meter or a calibrated app.
Why do the corners of my tent under-perform?
Inverse-square law plus the shape of the lamp's emission cone. Every LED has weaker edges. Solutions: reflective walls, plant training (ScrOG) to fill the sweet spot, or an under-canopy / side-lighting bar.
How do I balance light with CO₂, VPD and temperature?
Match them in tiers. Ambient CO₂ + moderate temperature (24–26 °C) supports up to ~900 μmol/m²/s. Enriched CO₂ + 27–29 °C + VPD 1.2–1.5 kPa supports up to ~1300 μmol/m²/s. Push one lever and the others must follow.
What DLI is best for autoflowers?
Veg: 25–35 mol/m²/day. Flower: 35–45 mol/m²/day. Because autoflowers run 18–20 h photoperiods, they hit these DLIs at lower PPFD than photoperiod plants.
Do I dim or do I raise the lamp?
Both — for different reasons. Raising the lamp widens the footprint and evens out uniformity. Dimming reduces total output without changing spread. Use distance for shape, dimmer for level.
Does spectrum matter as much as PPFD?
PPFD is the biggest lever by far. Modern white-plus-red quantum boards are broad enough that spectrum tuning delivers only a few extra percent — while a 200 μmol/m²/s PPFD change can move yield by 20 %+.
Why is my plant stretching even with a strong LED?
Almost always PPFD too low at the tops. Common causes: lamp too high, dimmer too low, or plants outgrew the light without you re-measuring. Verify PPFD at the actual top of the canopy.
Conclusion — intelligent light management, not lucky numbers
The goal was never 'always run 700 PPFD'. The goal is understanding why 700 μmol/m²/s can be perfect today and too much or too little tomorrow. Light management is a system: PPFD, DLI, distance, climate, CO₂, water, nutrients and genetics all move together. Change one and the optimum for the others shifts too.
“The lamp does not decide the yield. The way you match its light to the plant's biology — every day, in every stage — does.”
